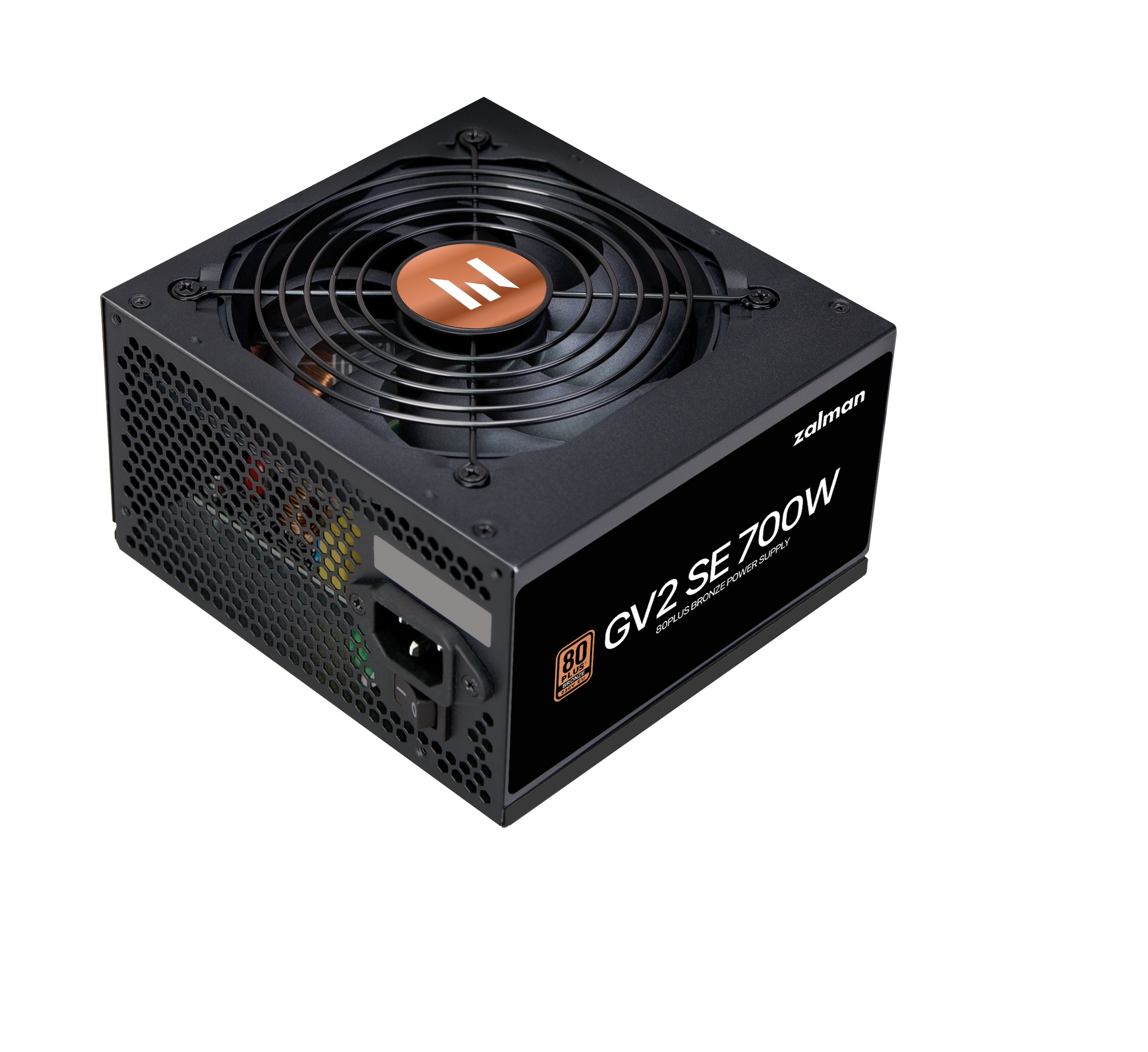

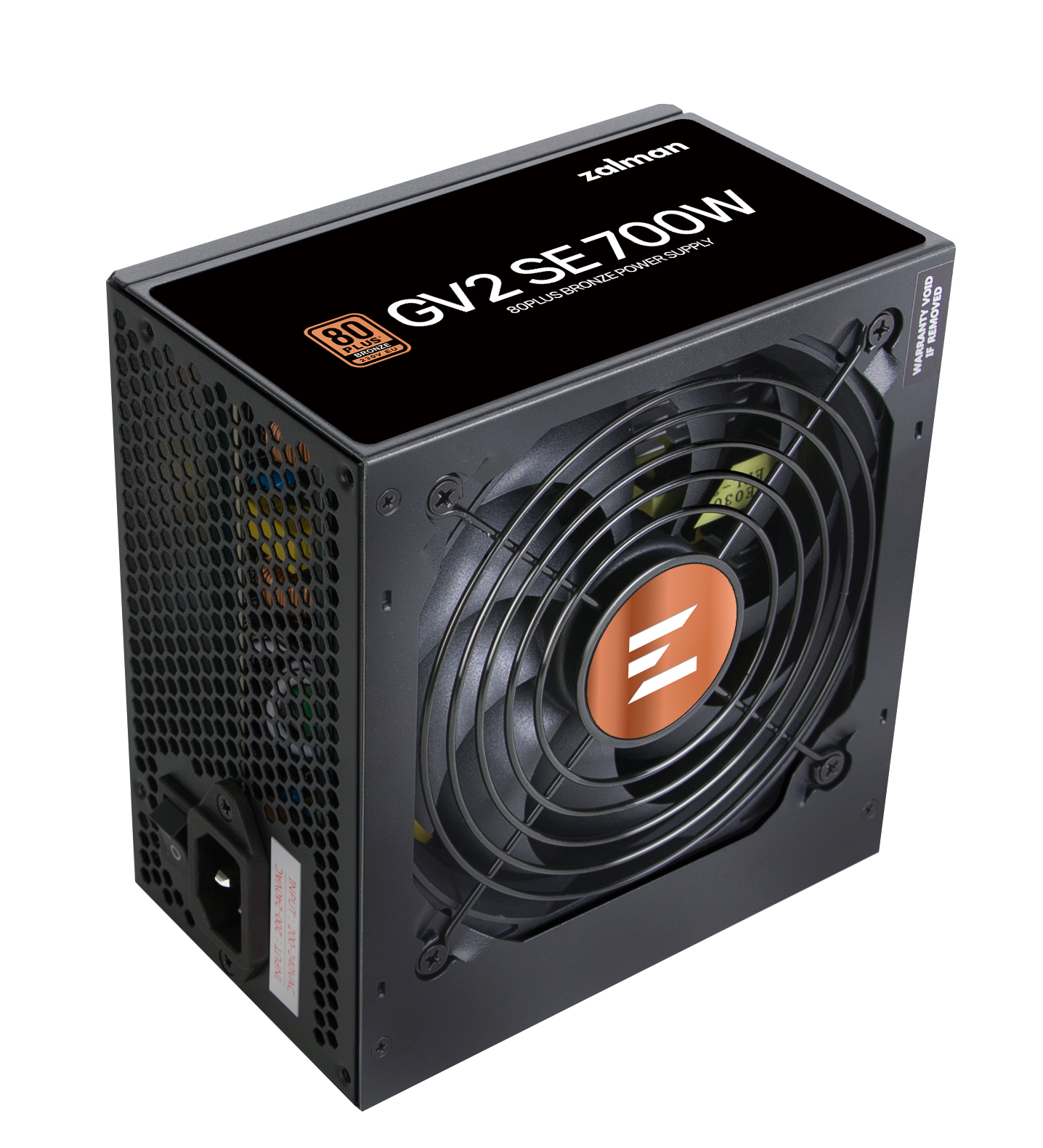

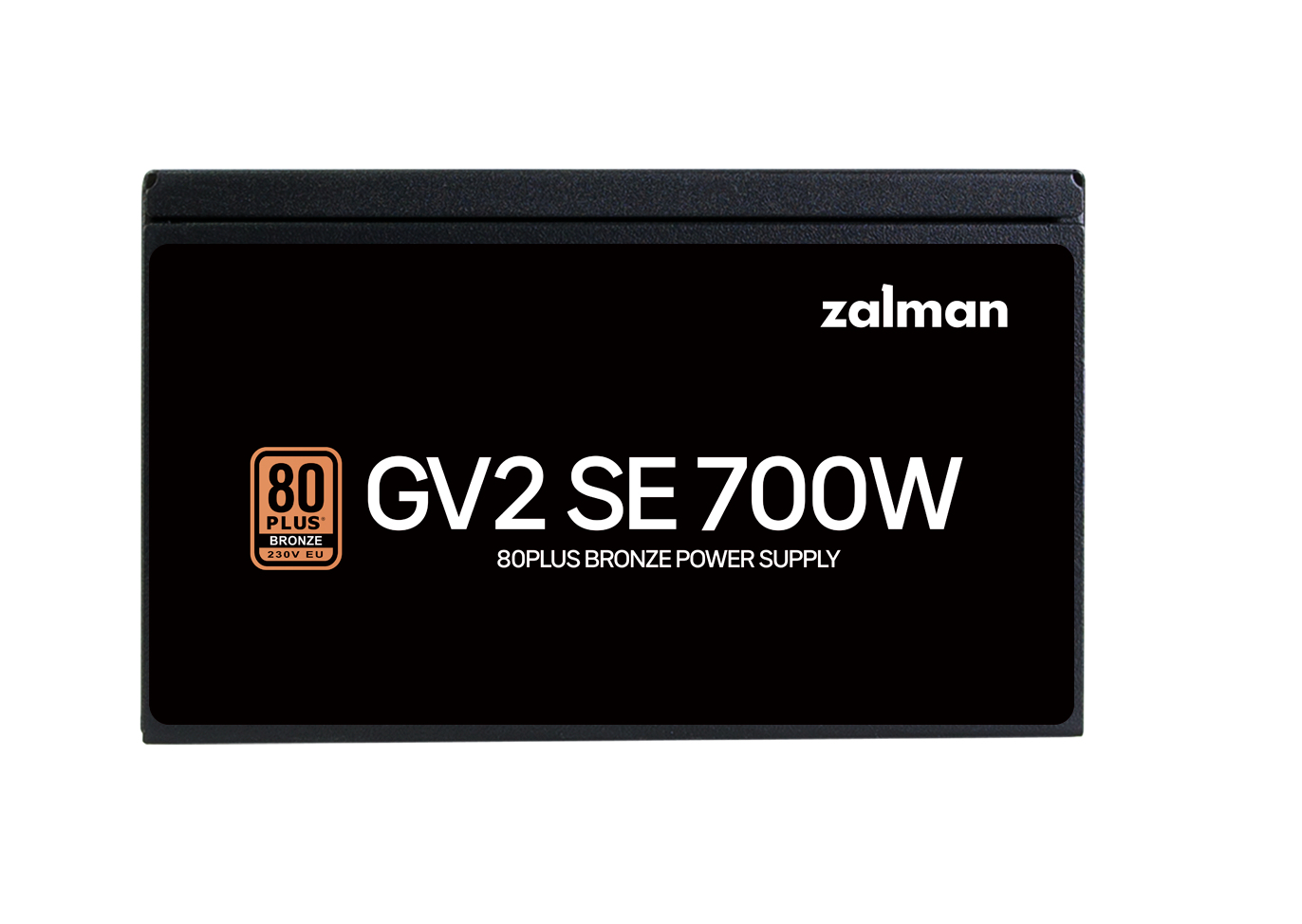

Zalman ZM700-GV2SE 700W 80PLUS Cybenetics Silver A, DC-DC, Single Rail, 120 mm HBD Fan, ATX 2.52, 2xPCIe, 4xMolex, 6xSATA, 1xFDD
- Productcode
- ZM700-GV2SE
- Merk
- Zalman
- Categorie
- Voedingen > ATX modulair
- Artikelnummer
- 00025402
- EAN-code
- 8800263650200
Op voorraad |
|
|---|---|
| Warbout Distributie | Ruim op voorraad |
Log in om uw prijsinformatie te zien
Cybenetics ETA SILVER
The GV2SE has an ETA Silver efficiency rating, meaning it has a guaranteed typical efficiency of 88%.
Cybenetics LAMBDA
Not only the efficiency of the power supplies is evaluated, also the noise generated by it.
GV2SE series has Lambda grade for certificated silent PSU.
80 PLUS Bronze 230V EU Certified
80PLUS Bronze guarantees 85%, 88%, 85% efficiency with 20%, 50% and 100% load rates, significantly reducing overall system power consumption.
The higher efficiency of the PSU means that there is less leakage of current, which means less heat, high frequency noises, and fan noise.
HDB(Hydro-Dynamic Bearing)
Quiet and Long Lifespan Cooling Technology
HDB(Hydro-Dynamic Bearing) has benefits of low noise and long life span
It discharges internal that quickly and provides sufficient cooling at a low RPM to maximize stable, safe power supply
120mm HDB Fan
120mm Low-noise fan delivers powerful spin even at a low RPM to quickly removes heat from power supply for optimal cooling performance
Active PFC With 99% Maximum Power Factor
Active PFC system with maximum power factor of 99% providing consistent and stable output as well as high energy efficiency.
High efficiency ensures safe, stable system operation with low component noise, less heat from parts, and minimal fluctuation of power supply.
12V DC-TO-DC Convertor With 100% Availability
The power supply supports a wide range of PC components, minimizing variations in output voltage, maximizing 12V DC rail output to provide a stable system operation
Built-In High Performance
Capacitor That Handles Up To 221˚F
Highly reliable capacitor used to supply stable voltage even at high temperatures up to 221˚F
Built-In EMI Filter For Noise Reduction
EMI filter is installed to suppress frequency that causes noise for better system operation.
Aluminum Solid Capacitor
All capacitors in the power supply are top quality and very reliable in supplying stable power even at high temperature.
Multiple Protection Circuit System
Multiple protection circuit system protects your system
OTP (Over Temperature Protection)
OCP (Over Current Protection)
OPP (Over Power Protection)
OVP (Over Voltage Protection)
UVP (Under Voltage Protection)
SCP (Short Circuit Protection)
Highly Energy-Efficient Standby Power Supply
ZALMAN’s power supply has such remarkable energy efficiency, that during standby the power supply can be kept under 0.5W to avoid any unnecessary power consumption.
The power supply has acquired ErP LOT 6 which passed european energy saving standards for environmental friendly and energy efficient experience for users.
Eco-Friendly Products
All Materials Included Are Environmentally Safe And Harmless.
RoHS Compliant
Certified products are environmentally safe that do not cause harm to the human body.
Certification is received when XRF testing determines that the 10 hazardous substances is below the standard value for the electronic products exported to europe.
Unlike other inexpensive products, ZALMAN’s products are produced from the beginning with RoHS standards in mind.
Intel and AMD RYZEN 100% Compatible and Ready
Meets all the needs of Intel and AMD RYZEN processors for high performance PC users.
Compact size
Standard ATX size provides wide compatibility
All Black Cables
Black Flat Cable
Zalman applies flat cable to all cables, which makes the cables easier organize when building system
Compnents and Accessories
Components
Manual, Screws, Cable Ties, Power cord
Certificatie |
Compliance certificates | CB,CE,EAC,KC,RCM,RoHS |
Design |
Colour of product | Black |
| Fan diameter | 120 mm | |
Energy management |
Total power | 700 W |
| AC input voltage | 200 - 240 V | |
| AC input frequency | 50/60 Hz | |
| Input current | 6 A | |
| Power Factor Correction (PFC) type | Active | |
| Combined power (+3.3V) | 120 W | |
| Combined power (+12V) | 700 W | |
| Combined power (+5V) | 120 W | |
| Combined power (-12V) | 6 W | |
| Combined power (+5Vsb) | 15 W | |
| Max output current (+3.3V) | 20 A | |
| Max output current (+12V) | 58.33 A | |
| Max output current (+5V) | 20 A | |
| Max output current (-12V) | 0.5 A | |
| Max output current (+5Vsb) | 3 A | |
| Efficiency | 88 % | |
| Power protection features | Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage | |
Operational conditions |
Operating temperature range (T-T) | 10 - 40 °C |
Performance |
Purpose | PC |
| Power supply unit (PSU) form factor | ATX | |
| 80 PLUS certification | 80 PLUS Bronze | |
| Bearing technology | HDB | |
| Mean time between failures (MTBF) | 100000 h | |
Ports & interfaces |
Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 550 mm | |
Weight & dimensions |
Width | 140 mm |
| Depth | 150 mm | |
| Height | 86 mm | |
| Weight | 1790 g | |
