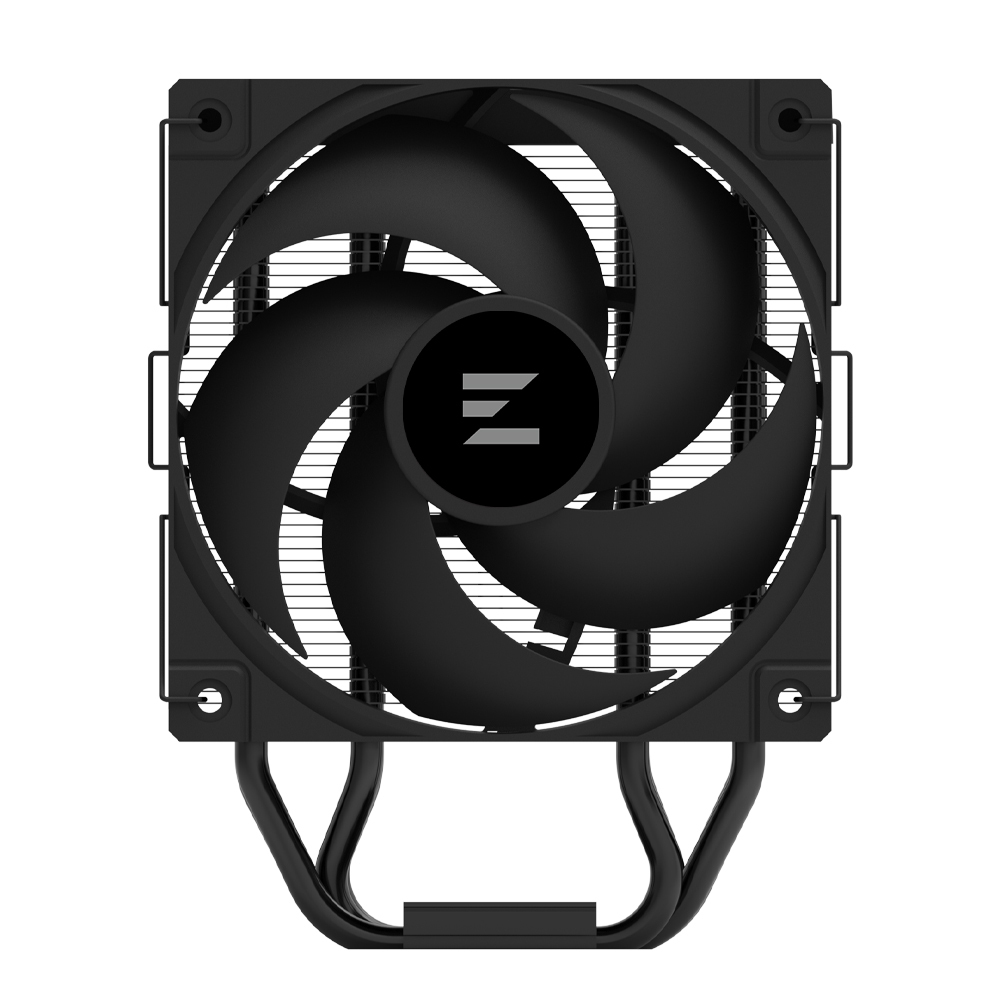

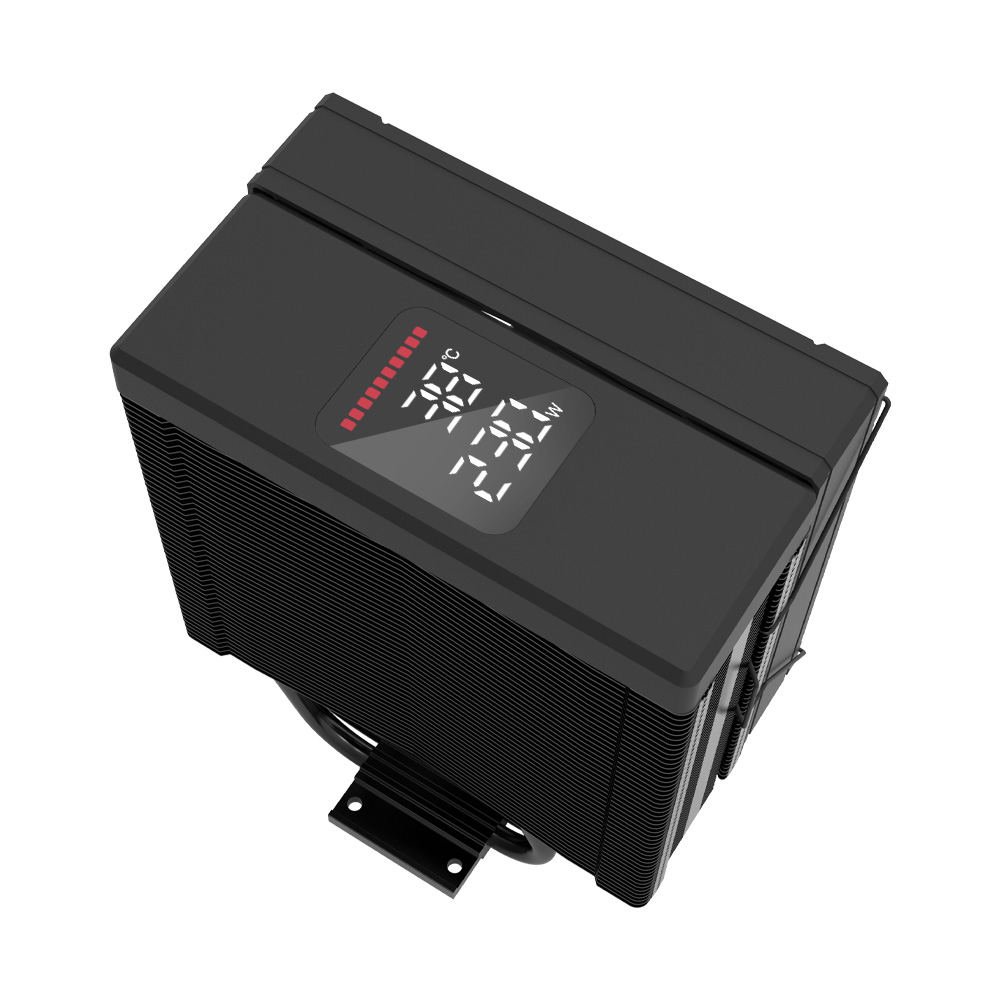

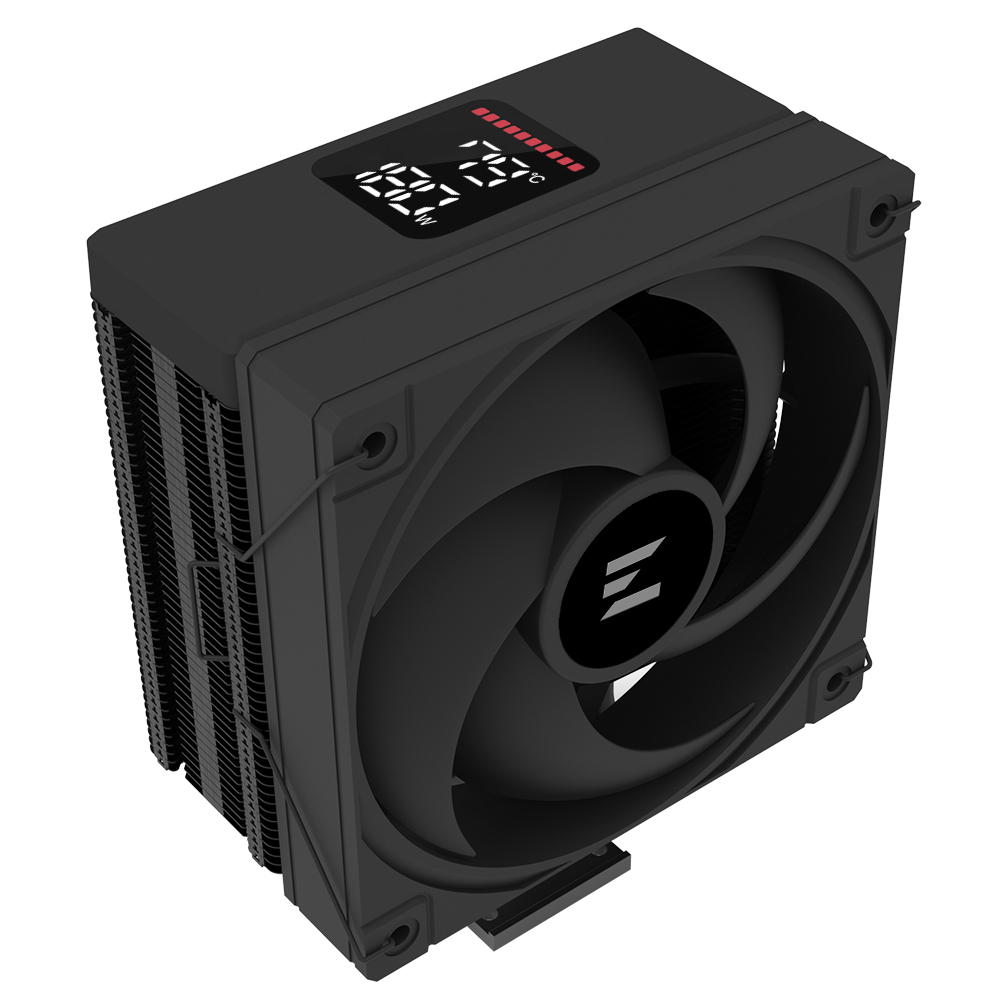

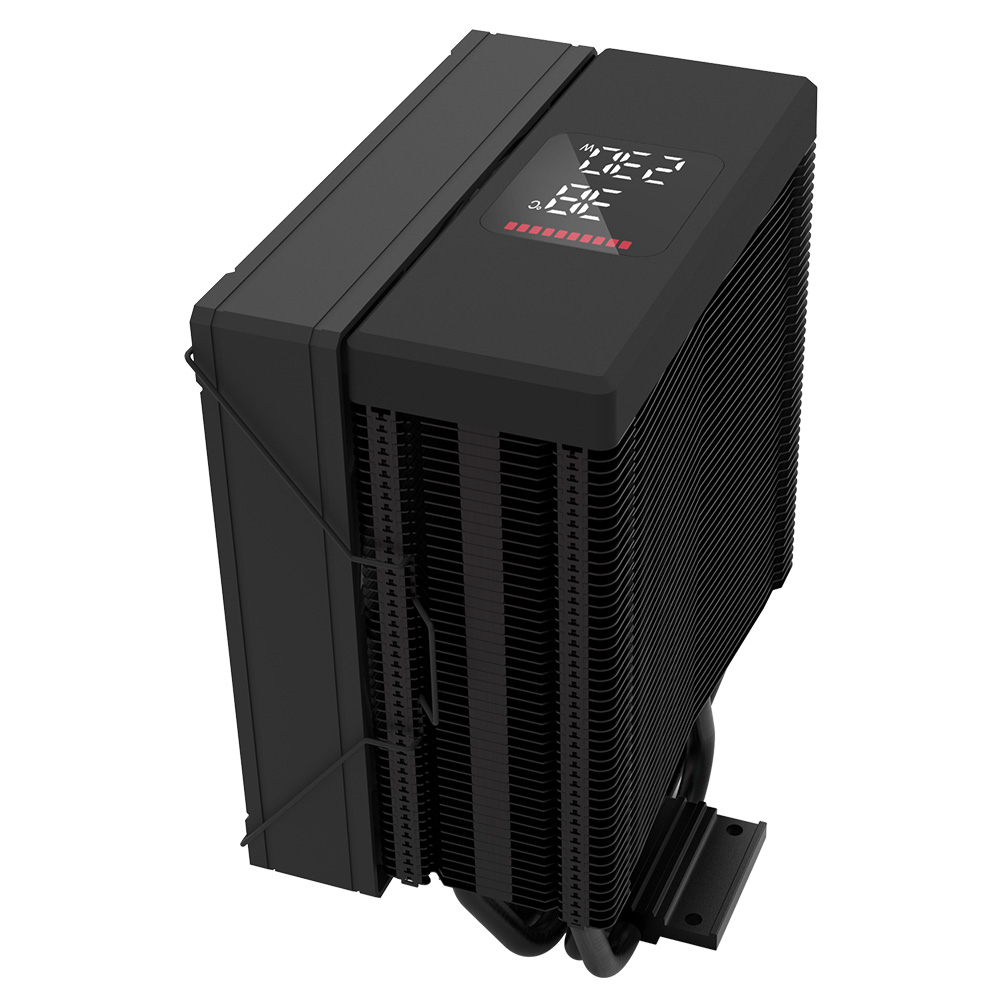

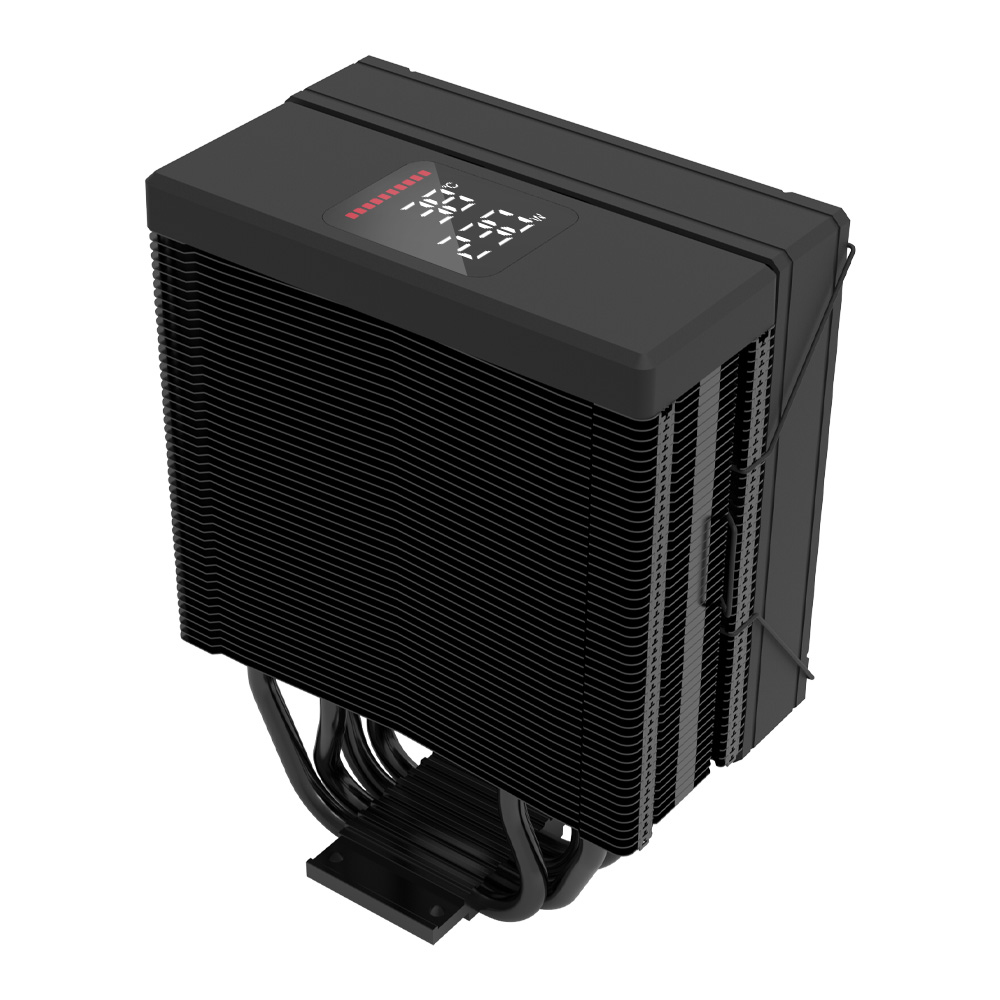

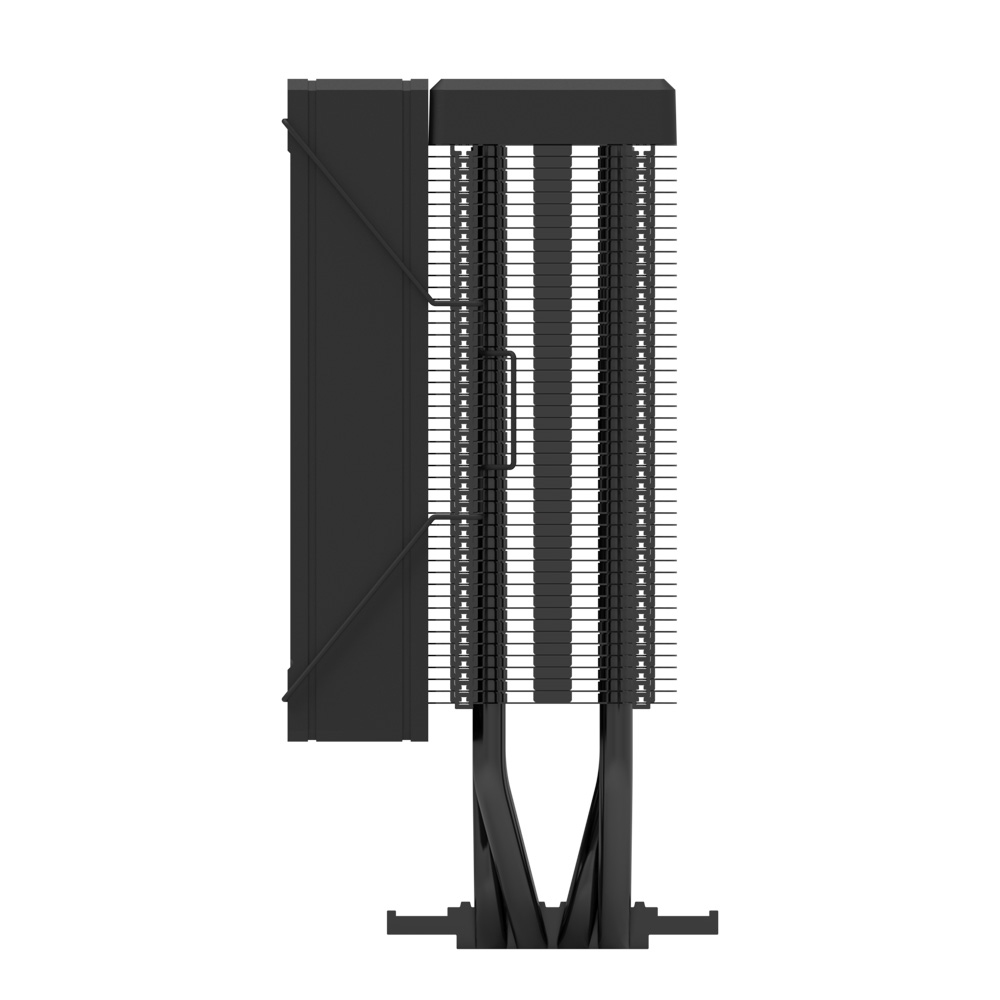

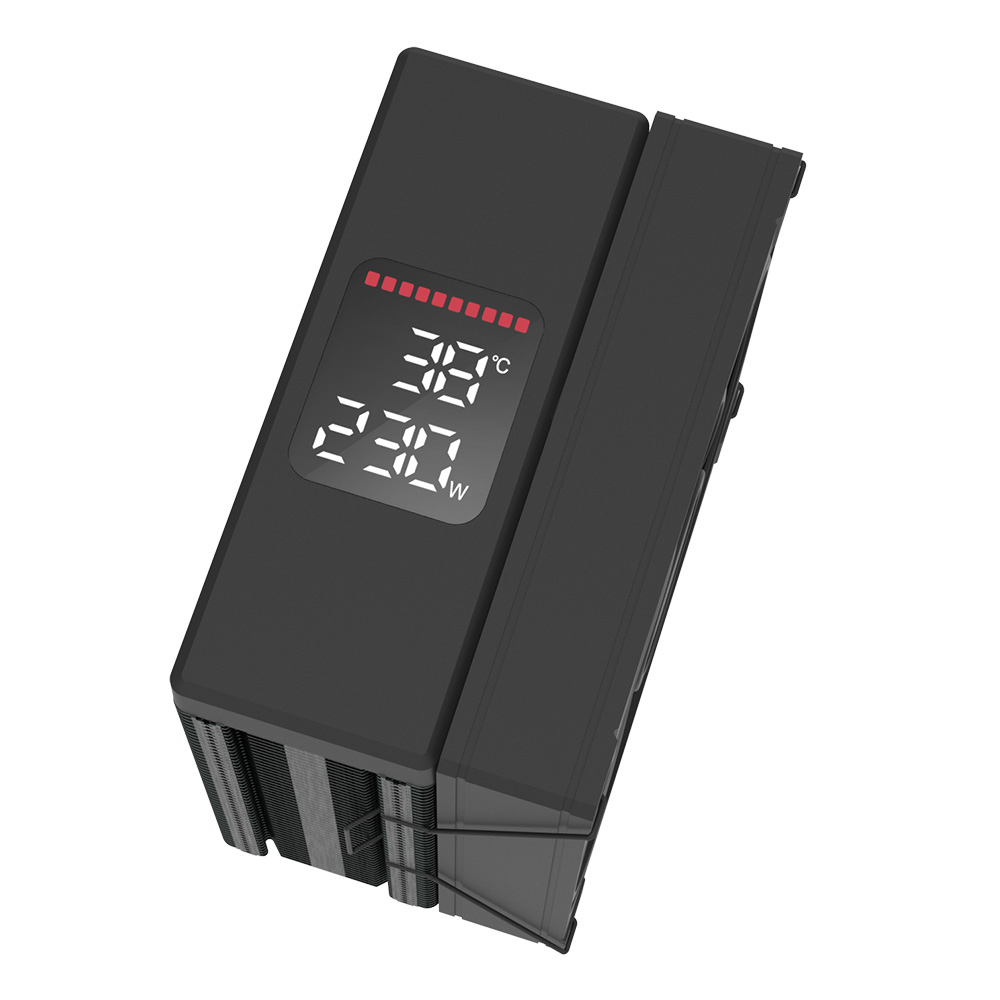

Zalman CNPS9X ECO DS, Intel : LGA1851 / 1700, AMD : AM5 / AM4, Display Top Cover: CPU Usage, CPU Temp, CPU Power
Powerful airflow with PWM Black fan
The CNPS9X ECO DS fan cooler delivers 571 CFM ±10% airflow It provides 241 mmH₂O ±10% static pressure and operates quietly at 314 dB(A) ±10% PWM automatic fan control ensures optimal cooling performance

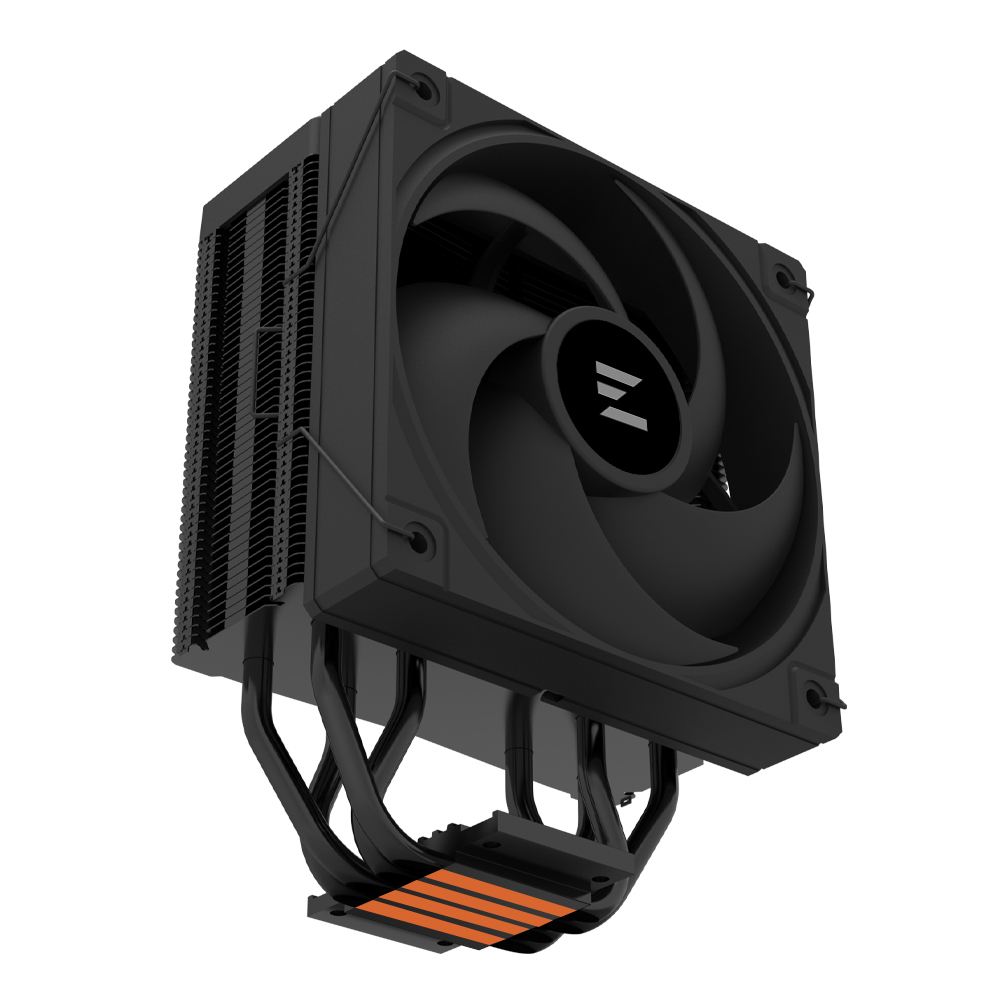

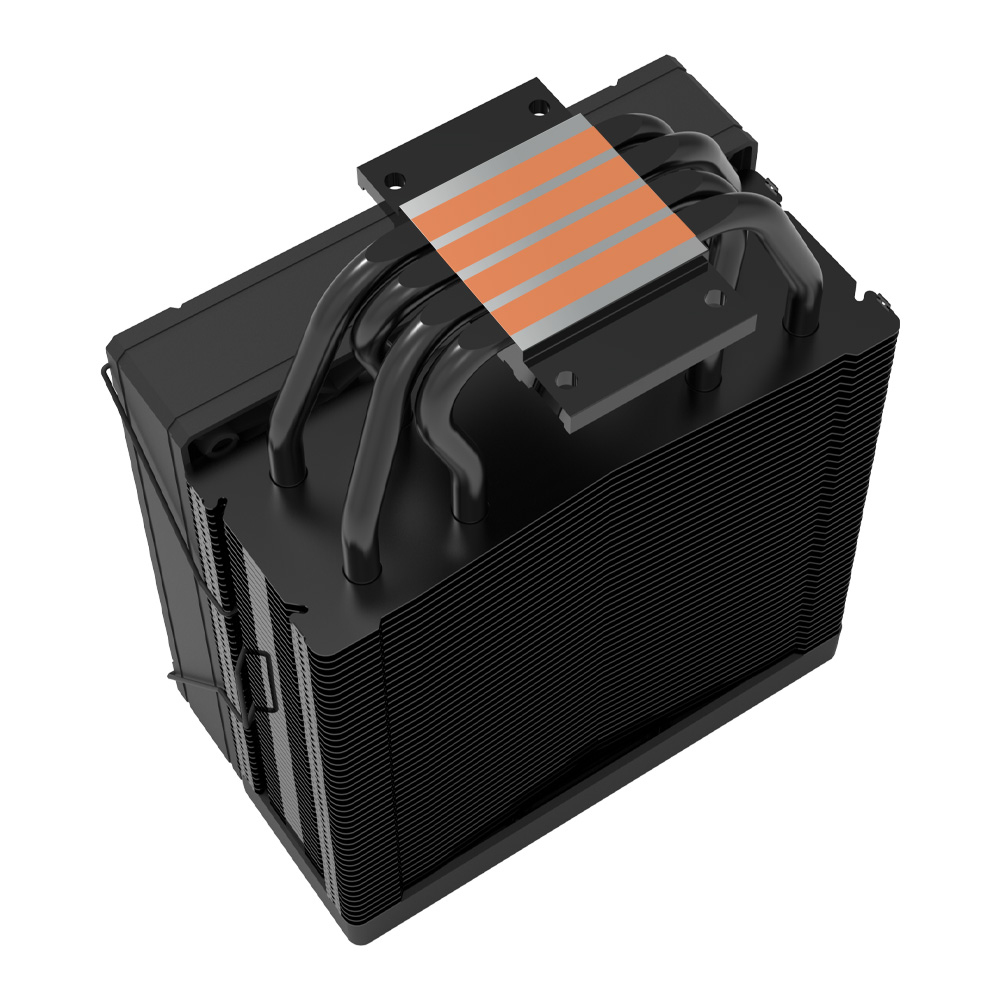

DTH(Direct Touch Heatpipe)
Zalman’s DTH technology is applied to minimize thermal resistance and maximize cooling performance
CNPS9X ECO DS effectively dissipates CPU heat with four high quality heatpipes and optimally designed heat sink (Supports up to 190W TDP)
Anti-vibration Rubber Damper
Rubber dampers absorb vibration noise during operation

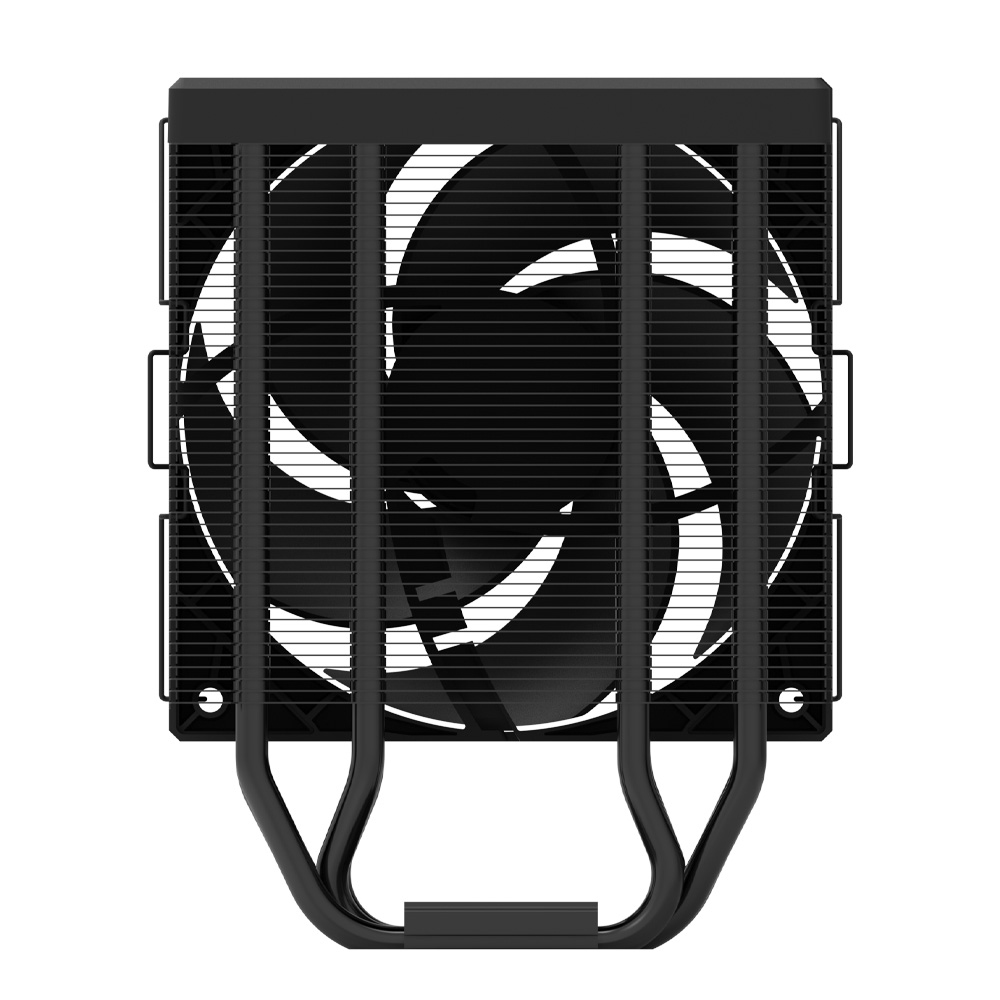

Black Coated Copper Heatpipes
Black coating adds aesthetic to CNPS9X ECO DS and improves the thermal conductivity and rust resistance
PWM Control for Automatic Speed Control
CNPS9X ECO DS fan features automatic fan speed control to achieve the optimal balance between
cooling performance and noise
Design |
Colour of product | Black |
| Material | Aluminium,Copper | |
| Number of fans | 1 | |
| Number of heat pipes | 4 | |
| Fan connector | 4-pin | |
Energy management |
Power consumption (typical) | 156 W |
| Rated voltage | 12 V | |
| Rated current | 0.13 A | |
Performance |
Suitable location | processor |
| Type | Air cooler | |
| Fan diameter | 120 mm | |
| Supported processor sockets | LGA 1700,LGA 1851,Socket AM4,Socket AM5 | |
| Noise level (high speed) | 31.4 dB | |
| Maximum airflow | 57.1 cfm | |
| Maximum air pressure | 2.41 mmH2O | |
| Pulse-width modulation (PWM) support | Ja | |
| Bearing type | Hydraulic | |
| Quantity per pack | 1 pcs | |
| Fan speed (min) | 600 RPM | |
| Fan speed (max) | 2100 RPM | |
| Fan's mean time to failure (MTTF) | 40000 h | |
Weight & dimensions |
Weight | 498 g |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm | |
