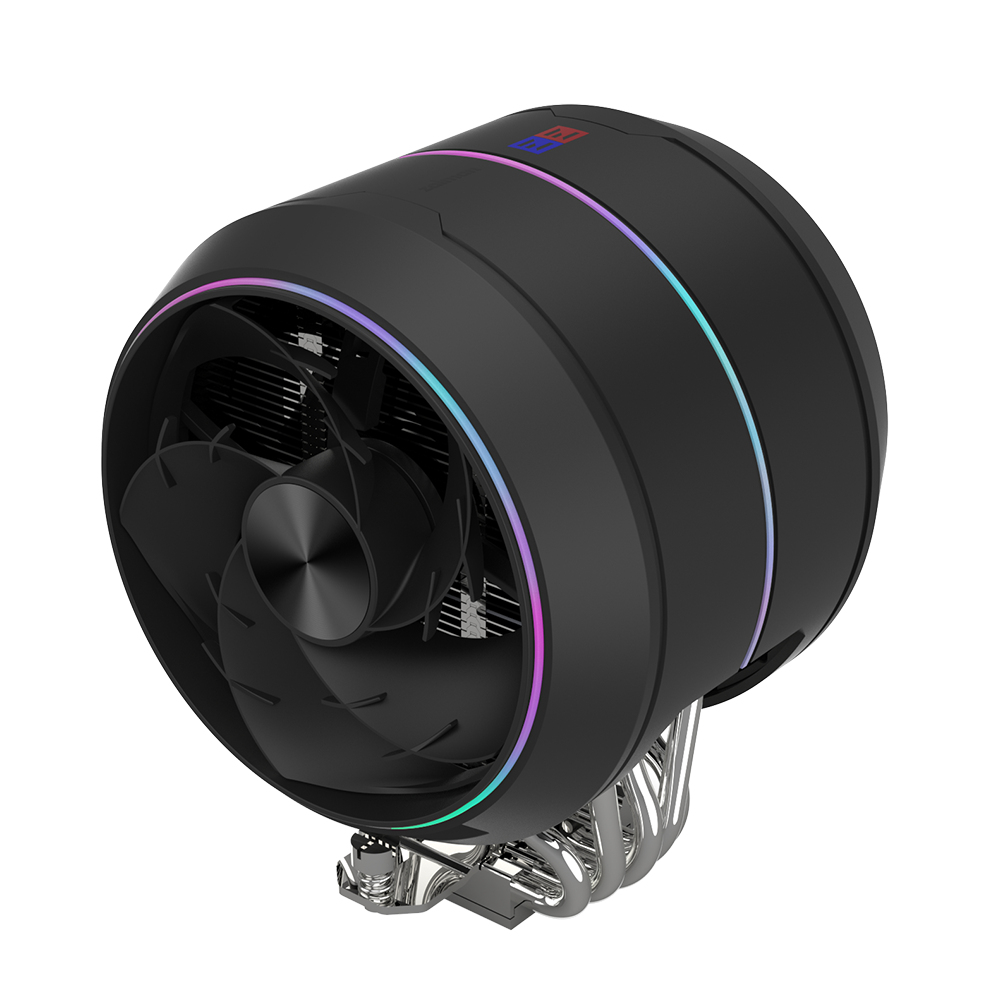

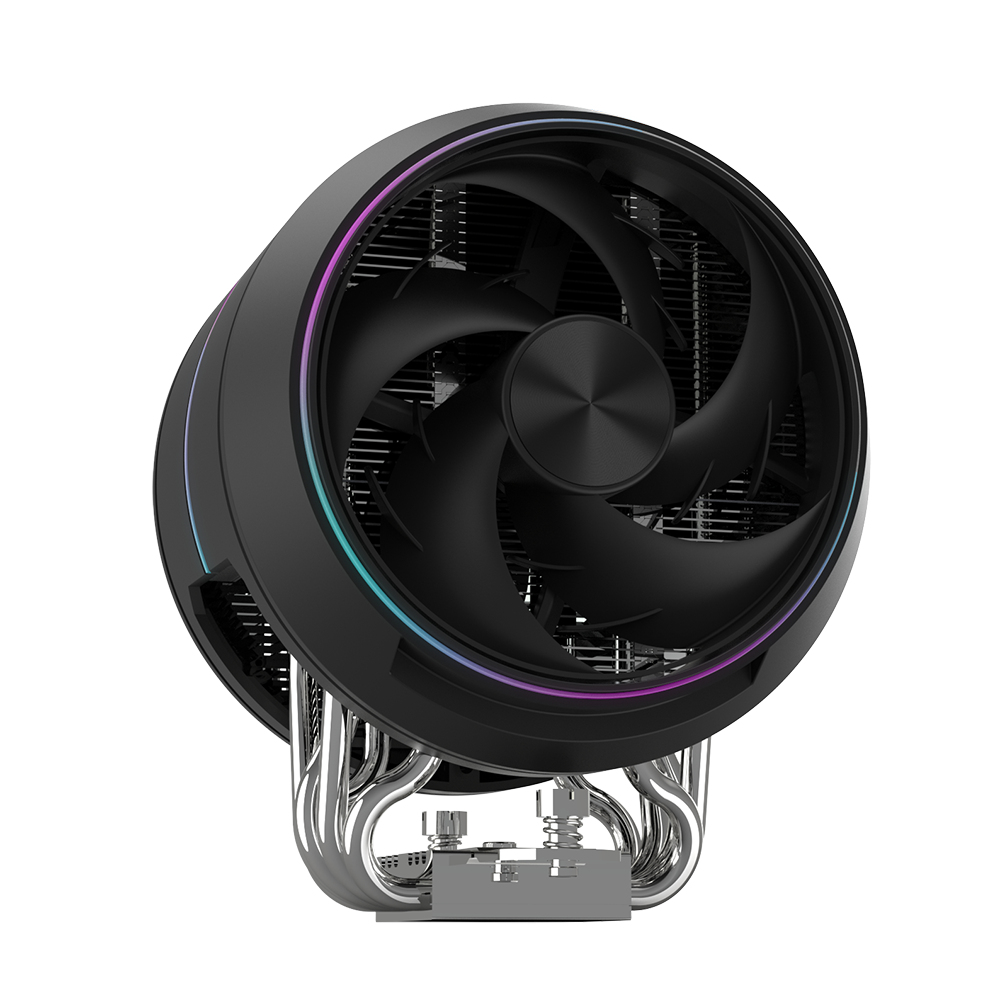

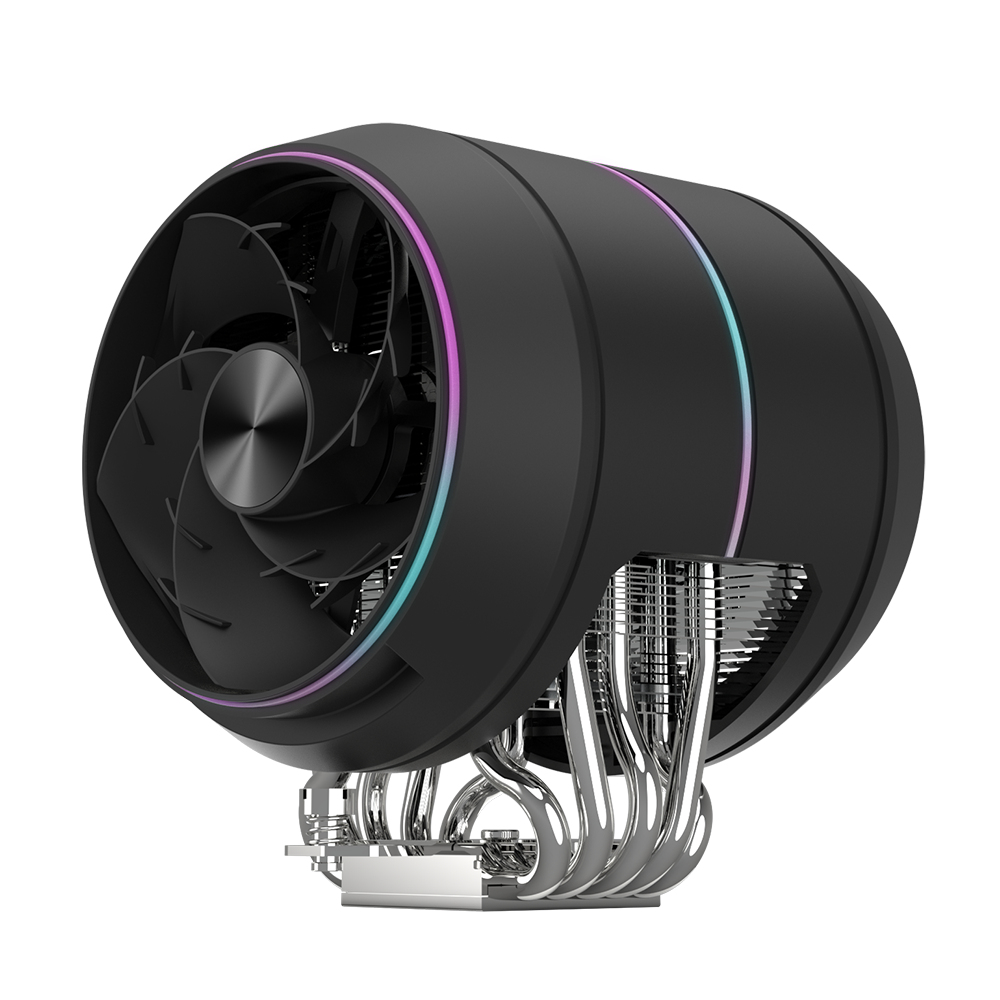

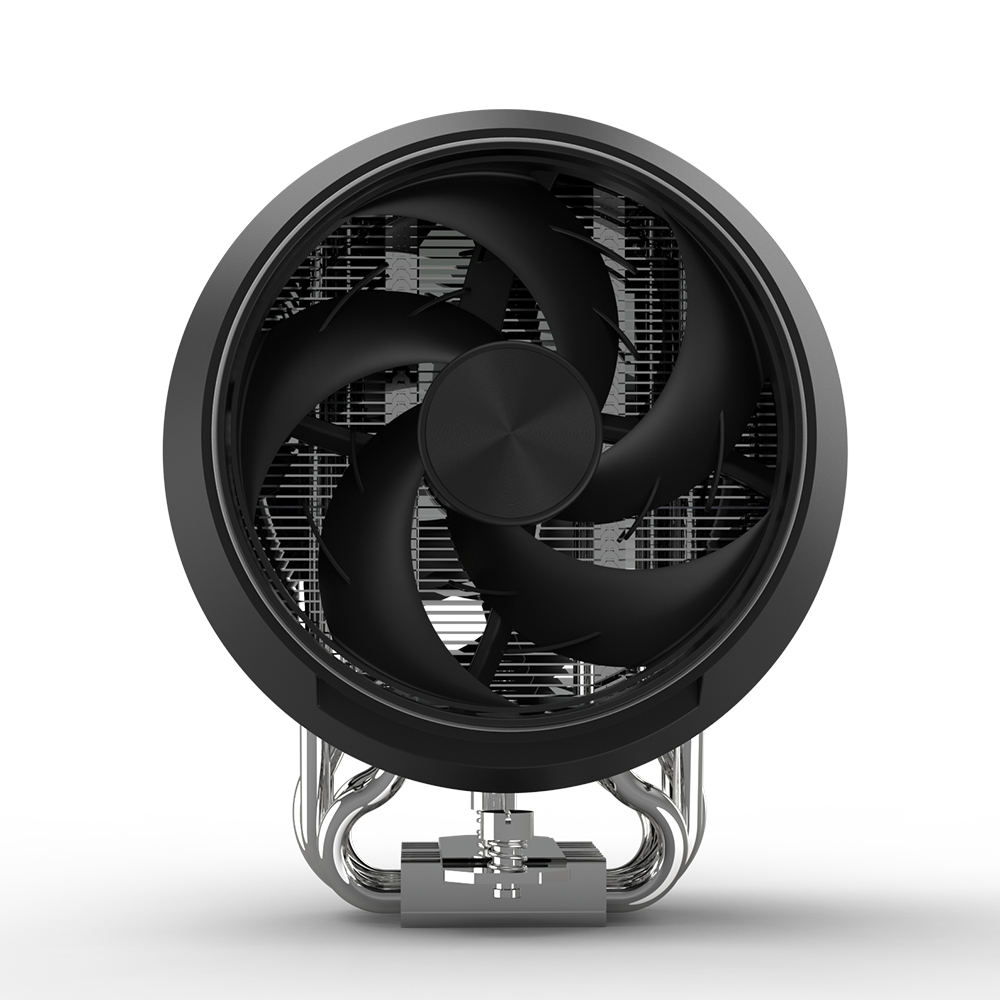

Jet Engine-Inspired Cooling Design
Inspired by jet engines, the ZET5 showcases
Zalman's latest design and performance innovations
Clean and Modern Logo Design
Magnetic & Pogo Pin Mounting System
High-Efficiency Dual-Directional Cooling Fans
Powerful 120mm Annular Fan
Zalman AF120 annular fan is designed to prevent vortex and backflow at the end of the wings, which can improve efficiency and stability by suppressing vibration.
High-Performance Circular Heatsink
53 Heatsink Fins Deliver
Superior Cooling Efficiency
TDP 220W
Supports motherboard ARGB control for vibrant LED Sync
RDTH(Reverse Direct Touch Heatpipe)
Zalman’s RDTH technology is applied to minimize thermal resistance and maximize cooling performance
DTH(Direct Touch Heatpipe)
Direct heat transfers to heatpipes maximize cooling performance and minimize heat resistance
RDTH(Reverse Direct Touch Heatpipe)
RDTH allows larger dissipation area of heatpipes and minimize heat resistance
Direct Solder Bonding for Maximum Efficiency
Direct soldering between the heatpipes and heatsink allows for ultra-precise contact, significantly enhancing heat transfer efficiency.
Excellent thermal conductive thermal compound ZM-STC10
Zalman ZET5 comes with ZM-STC10.
STC10 provides ideal heat transfer to keep PC cool and ready for heavy loads. It provides excellent thermal conductivity by filling the space between the cooler base and CPU.
Design |
Colour of product | Black |
| Material | Copper,Aluminium,Acrylonitrile Butadiene Styrene (ABS) | |
| Number of heat pipes | 5 | |
| LED connector type | 3-pin | |
| Fan connector | 4-pin | |
Energy management |
Rated voltage | 12 V |
| Fan power consumption | 3.36 W | |
| Rated current | 0.28 A | |
| Thermal Design Power (TDP) | 220 W | |
Performance |
Suitable location | processor |
| Type | fan | |
| Fan diameter | 120 mm | |
| Supported processor sockets | LGA 1851,LGA 1700,LGA 1200 (Socket H5),Socket AM4,Socket AM5,LGA 1150 (Socket H3),LGA 1151 (Socket H4),LGA 1155 (Socket H2),LGA 1156 (Socket H) | |
| Rotational speed (min) | 600 RPM | |
| Rotational speed (max) | 2000 RPM | |
| Noise level (high speed) | 30.4 dB | |
| Maximum airflow | 44.48 cfm | |
| Bearing type | Hydro dynamic bearing (HDB) | |
| Quantity per pack | 1 pcs | |
| Operating temperature range (T-T) | -40 - 150 °C | |
Weight & dimensions |
Width | 130 mm |
| Depth | 117 mm | |
| Height | 158 mm | |
| Weight | 970 g | |
